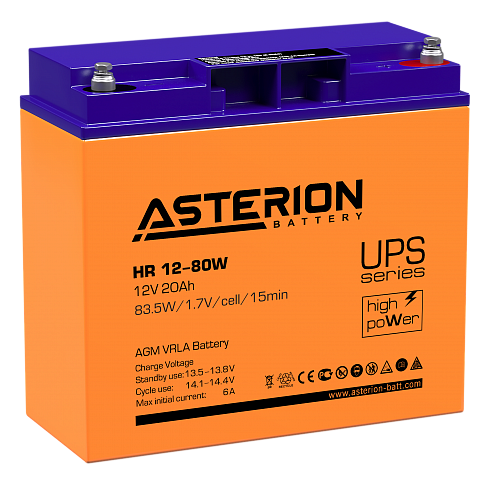

ASTERION HR-W series batteries are sealed, maintenance-free lead-acid batteries with gas recombination system (VRLA), manufactured using AGM technology (electrolyte absorbed in a separator).
Details
Ask a Question
Specifications
| Nominal voltage, V | 12 |
| Nominal capacity, Ah | 20,88 |
| Design life, years | 8 |
| Technology | AGM |
| Length, mm | 181 |
| Width, mm | 77 |
| Height,mm | 167 |
| Height without terminals, mm | 167 |
| Application | Installation of communication / communication systems and telecommunications / telephone exchange |
| Height max,mm | 167 |
| Weight, kg | 6,5 (±3%) |
Description

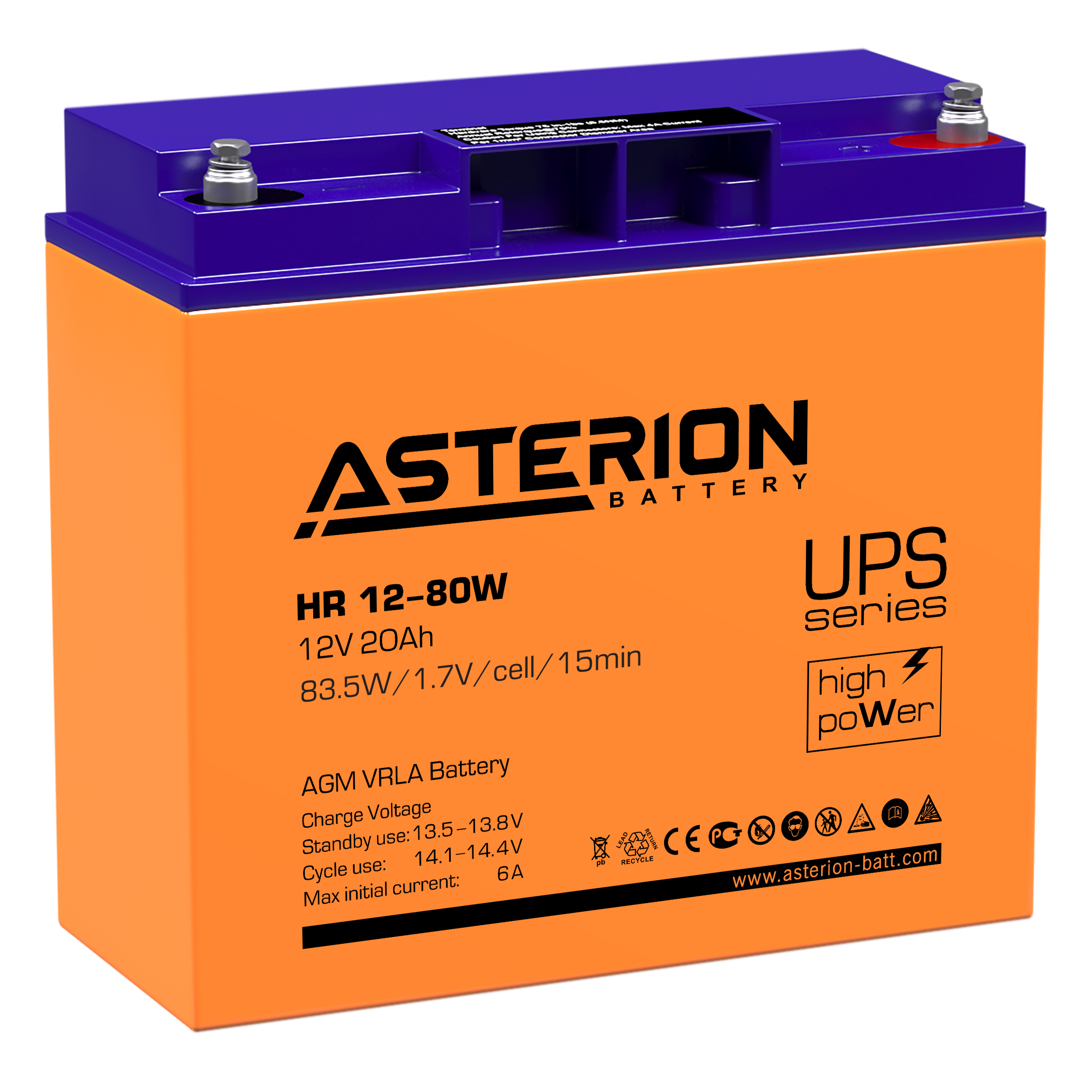

ASTERION HR-W series batteries are sealed, maintenance-free lead-acid batteries with gas recombination system (VRLA), manufactured using AGM technology (electrolyte absorbed in a separator). The HR-W series relates to the ASTERION UPS series, designed specifically for use in uninterruptible power supplies for server and other similar systems. The HR-W series has high energy efficiency due to its use in the production of more massive plates.
Battery construction
| Element | Positive plate | Negative plate | Case | Lid | Valve | Terminal | Separator | Electrolyte |
|---|---|---|---|---|---|---|---|
| Material | Lead dioxide | Lead | ABS | Rubber | Copper | Fiberglass | Acid |
Performance & characteristics:
- AGM technology allows to recombinate 99% of the generated gas;
- No restrictions on air transportation;
- Compliance with the UL requirements;
- Lead plates, alloyed by calcium, provide high energy density;
- Maintenance-free. Do not require distillate topping;
- Long service life;
- The battery case is made of flame-retardant ABS plastic.
Application:
- Uninterruptable power supply
- Back up power supply
- Medical devices
- Portable devices
- Professional equipment
Operating temperature range
| Discharge | -20÷60 |
|---|---|
| Charge | -10÷60 |
| Storage | -20÷60 |

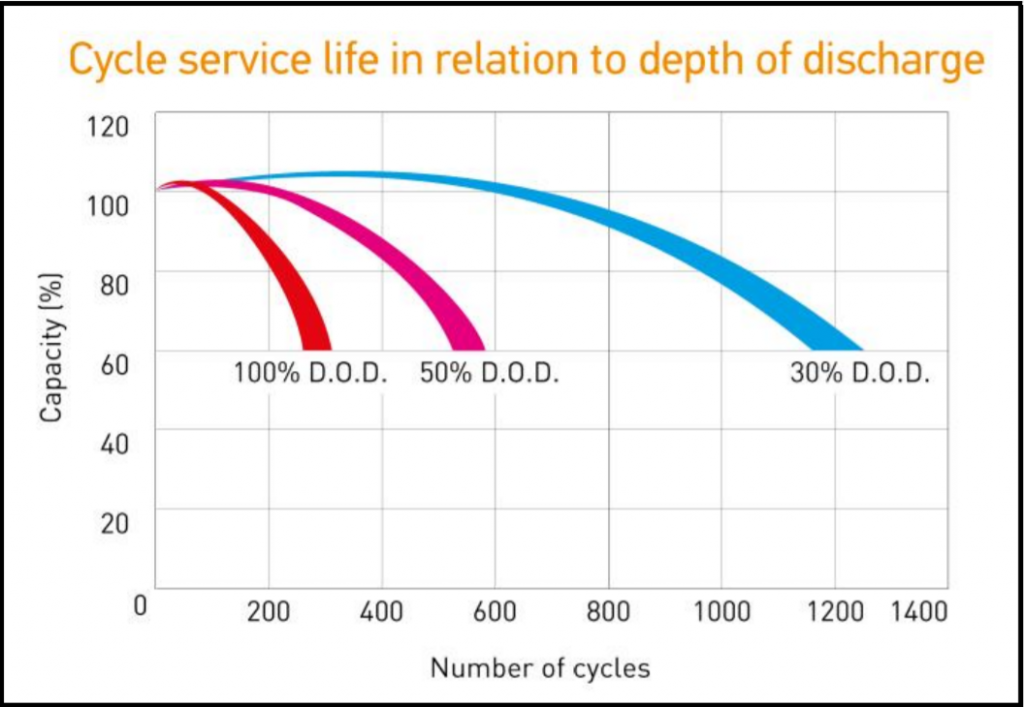

| Cycle mode (2,35÷2,4 V/cell): | |
| Maximum discharge current | 300 А |
| Temperature correction factor | 30 mV/°С |

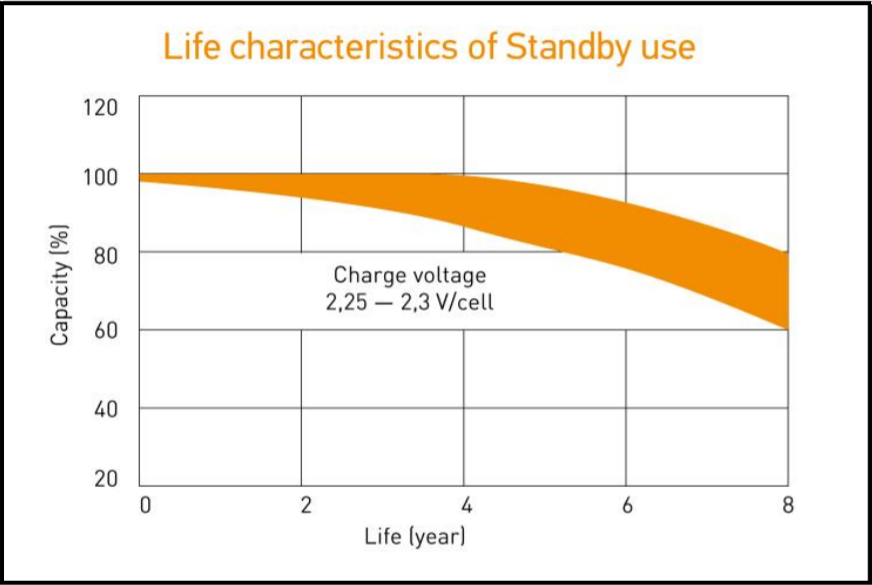

| Standby mode (2,25÷2,3 V/cell): | |
| Temperature correction factor | 20 mV/°С |
Discharge Constant Current, A ( 25°С)
| V/cell | 5 min | 10 min | 15 min | 30 min | 45 min | 1 h | 3 h | 5 h | 20 h |
|---|---|---|---|---|---|---|---|---|---|
| 1.60V | 90,7 | 66,4 | 50,3 | 29,9 | 21,0 | 16,0 | 6,13 | 3,91 | 1,07 |
| 1.65V | 88,5 | 64,7 | 49,7 | 28,5 | 20,2 | 15,5 | 6,10 | 3,87 | 1,07 |
| 1.70V | 87,0 | 63,0 | 48,9 | 27,7 | 19,7 | 15,2 | 6,04 | 3,75 | 1,04 |
| 1.75V | 80,4 | 58,1 | 45,1 | 27,3 | 19,4 | 14,9 | 5,96 |
3,65 |
1,00 |
| 1.80V | 75,7 | 57,3 | 42,5 | 26,5 | 19,0 | 14,7 | 5,83 |
3,61 |
0,95 |
Discharge Constant Power, W/cell ( 25°С)
| V/cell | 5 min | 10 min | 15 min | 30 min | 45 min | 1 h | 3 h | 5 h | 20 h |
|---|---|---|---|---|---|---|---|---|---|
| 1.60V | 172 | 116 | 86,3 | 51,5 | 37,6 | 29,8 | 11,6 | 7,27 | 1,95 |
| 1.65V | 167 | 115 | 85,1 | 50,7 |
37,1 |
29,2 |
11,5 | 7,18 | 1,93 |
| 1.70V | 164 | 113 | 83,5 | 50,1 | 36,4 | 28,5 | 11,4 | 7,09 | 1,91 |
| 1.75V | 161 | 112 | 77,8 | 48,5 | 35,2 |
27,6 |
11,3 |
7,00 | 1,83 |
| 1.80V | 158 | 108 | 73,3 | 47,4 | 34,5 | 27,2 | 11,2 | 6,99 | 1,77 |
