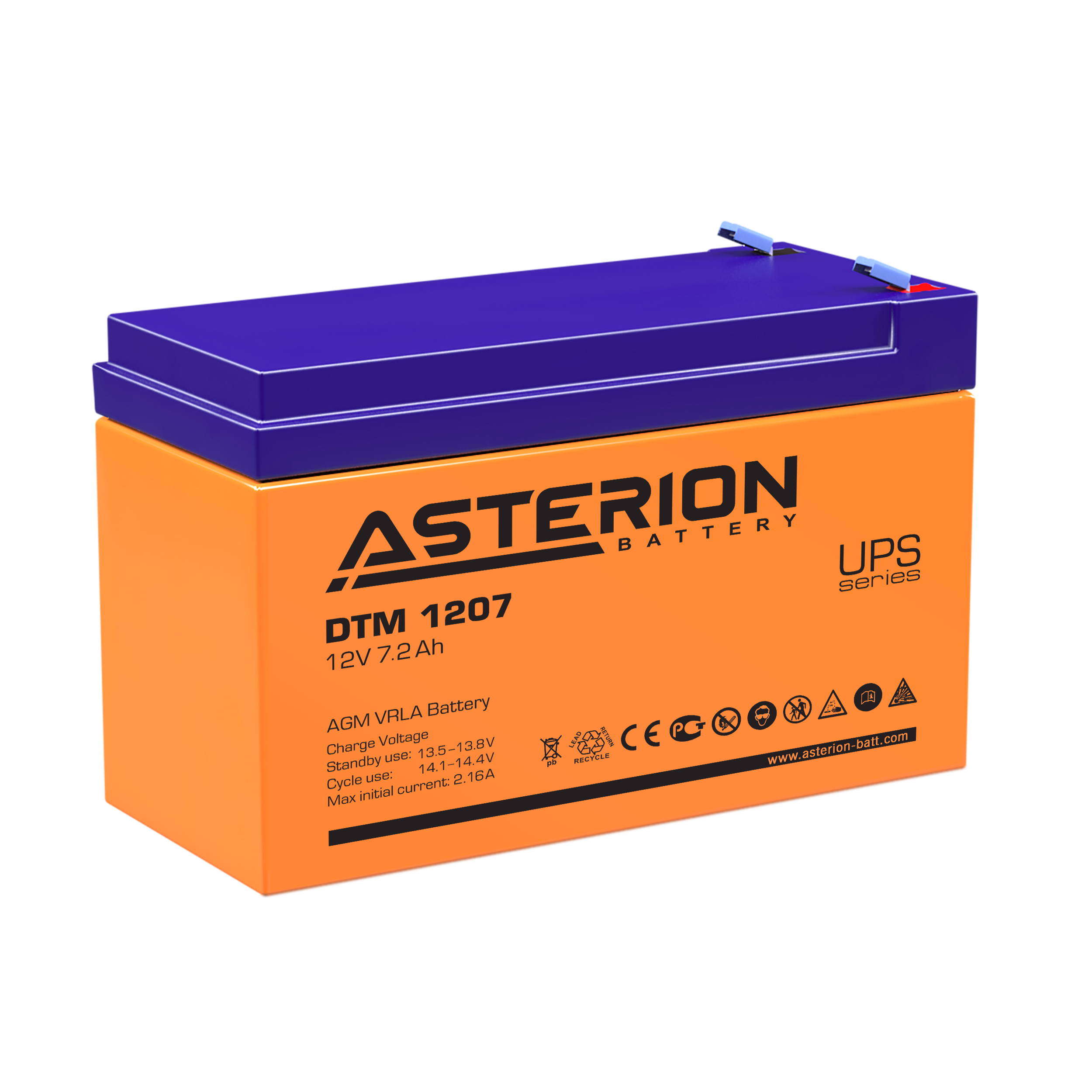

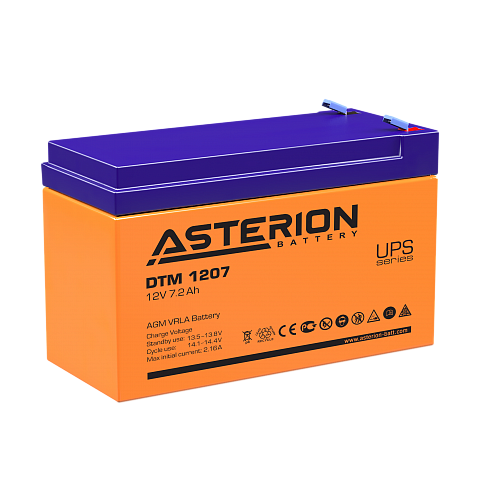

Lead-acid batteries series DTM ASTERION brand are a clear example of sealed maintenance-free batteries with gas recombination system (VRLA), produced by AGM technology (electrolyte absorbed in glass fiber separator).
Details
Ask a Question
Specifications
| Nominal voltage, V | 12 |
| Nominal capacity, Ah | 7.2 |
| Design life, years | 6 |
| Technology | AGM |
| Length, mm | 151 |
| Width, mm | 65 |
| Height,mm | 94 |
| Height without terminals, mm | 94 |
| Height max,mm | 100 |
| Weight, kg | 2,4 (±3%) |
Description
Lead-acid batteries series DTM ASTERION brand are a clear example of sealed maintenance-free batteries with gas recombination system (VRLA), produced by AGM technology (electrolyte absorbed in glass fiber separator). DTM is an universal series recommended to be used both in buffer and cyclic modes. Designed for application in mobile and handheld devices, and due to stable high homogeneity of the internal resistance of products, is ideal for use in back-up power sources and units.
Battery construction
| Element | Positive plate | Negative plate | Case | Lid | Valve | Terminal | Separator | Electrolyte |
|---|---|---|---|---|---|---|---|
| Material | Lead dioxide | Lead | ABS | Rubber | Copper | Fiberglass | Acid |
Performance & characteristics:
- AGM technology allows to recombinate 99% of the generated gas;
- No restrictions on air transportation;
- Compliance with the UL requirements;
- Lead plates, alloyed by calcium, provide high energy density;
- Maintenance-free. Do not require distillate topping;
- Long service life;
- The battery case is made of flame-retardant ABS plastic.
Application:
- Uninterruptable power supply
- Back up power supply
- Medical devices
- Control & monitoring systems
- Emergency systems
- Portable devices
- Professional equipment
- Cash-register machine

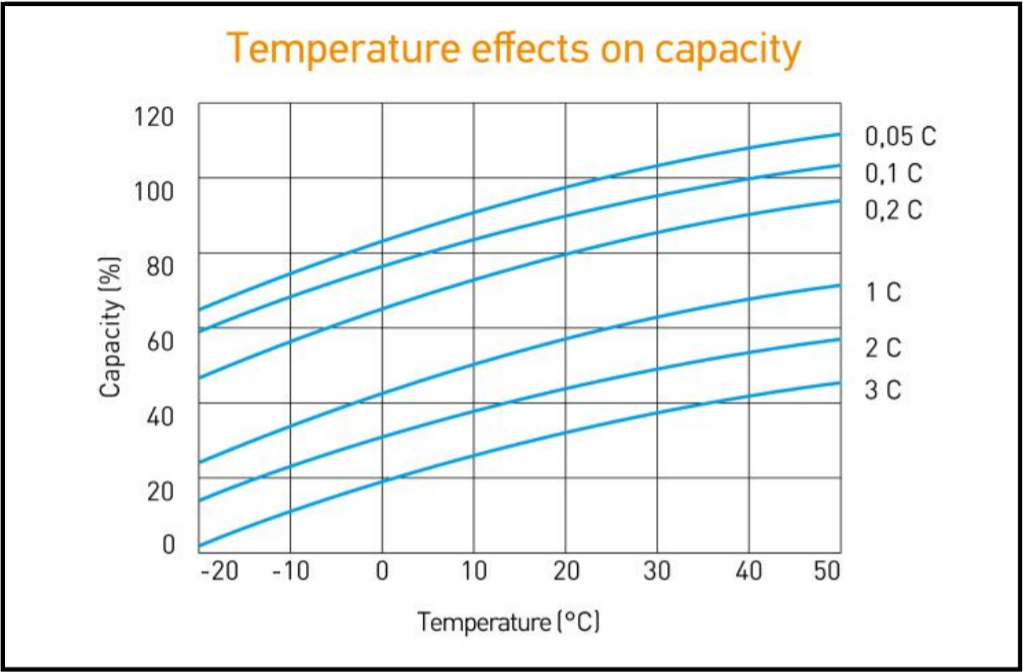

Operating temperature range
| Discharge | -20÷60 |
|---|---|
| Charge | -10÷60 |
| Storage | -20÷60 |
| Cycle mode (2,35÷2,4 V/cell): | |
| Maximum discharge current | 105 А |
| Temperature correction factor | 30 mV/°С |

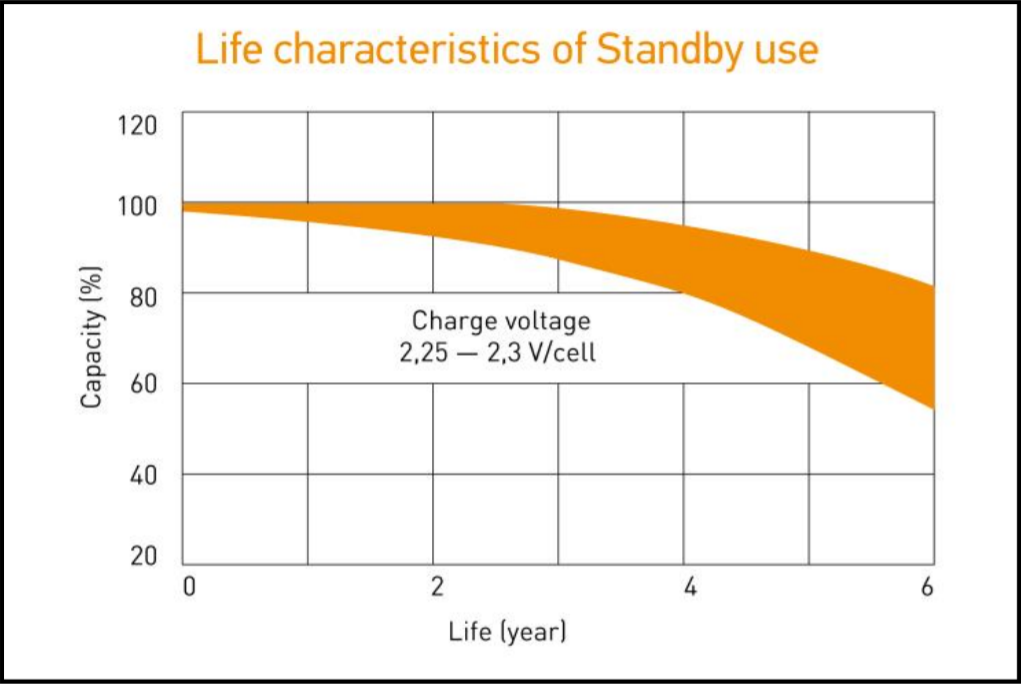

| Standby mode (2,25÷2,3 V/cell): | |
| Temperature correction factor | 20 mV/°С |
Discharge Constant Current, A ( 25°С)
| V/cell | 5 min | 10 min | 15 min | 30 min | 1 h | 3 h | 5 h | 10 h | 20 h |
|---|---|---|---|---|---|---|---|---|---|
| 1.60V | 29,1 | 18,4 | 14,8 | 8,30 | 4,56 | 1,84 | 1,26 | 0,70 | 0,37 |
| 1.65V | 27,5 | 17,5 | 14,2 | 7,90 | 4,40 | 1,80 | 1,22 | 0,69 | 0,37 |
| 1.70V | 26,0 | 16,7 | 13,6 | 7,62 | 4,22 | 1,74 | 1,17 |
0,69 |
0,37 |
| 1.75V | 24,4 | 15,7 | 13,0 | 7,24 | 4,04 | 1,68 | 1,13 |
0,68 |
0,36 |
| 1.80V | 22,8 | 14,8 | 12,4 | 7,03 | 3,84 | 1,63 | 1,08 |
0,66 |
0,35 |
Discharge Constant Power, W/cell ( 25°С)
| V/cell | 5 min | 10 min | 15 min | 30 min | 1 h | 3 h | 5 h | 10 h | 20 h |
|---|---|---|---|---|---|---|---|---|---|
| 1.60V | 52,0 | 35,1 | 27,5 | 15,2 | 8,97 | 3,59 | 2,33 | 1,33 | 0,71 |
| 1.65V | 49,4 | 33,3 | 26,5 | 14,6 | 8,59 | 3,50 | 2,29 | 1,32 | 0,70 |
| 1.70V | 46,9 | 31,6 | 25,4 | 14,0 | 8,23 | 3,40 | 2,25 | 1,32 | 0,70 |
| 1.75V | 44,5 | 29,8 | 24,3 | 13,4 | 7,99 | 3,30 | 2,21 | 1,32 | 0,69 |
| 1.80V | 41,6 | 28,0 | 23,3 | 12,9 | 7,62 | 3,19 | 2,15 | 1,32 | 0,69 |
